JZG-RS-03
GLE

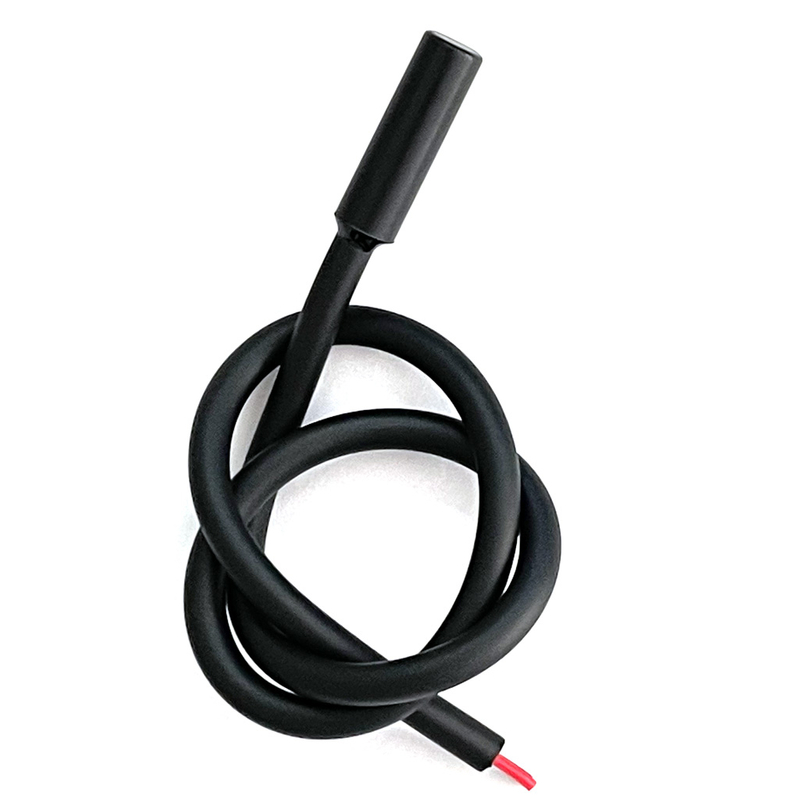

cylindrical plastic shell series proximity sensor
Features of cylindrical proximity sensor
Reverse polarity protection;
Short-circuit protection (Φ6/Φ5 DC type);
Long-life & high reliability;
Yellow Led indicates working status of sensor;
Economical and easy to operate;
Alternatives for mini switch and limit switch;
Molded&Formed Reed Switches Specification Table
| Model | MDSR-10 | ORD211 | MKA10110 | MDSR-7 | ORD324 | MKA14103 | FLEX-14 | HA15-2 | ||||
| encapsulation body size (L*W*H)mm | 11.43*2.3*2.3 | 16*2.4*2.4 | 16*2.8*2.8 | 18*2.5*2.5 | ||||||||
| AT Range | 10-40 | 10-40 | 10-35 | 10-40 | 10-40 | 10-40 | 10+ | 15+ | 20+ | 17-23 | 22+ | |
| switching power MAX | 10 | 1 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 100-265VAC(20W) Other(10W) | ||
| switching voltage | DC MAX | 200 | 24 | 100 | 200 | 200 | 100 | 175 | 200 | 200 | 200 | 200 |
| AC RMS MAX | 125 | 24 | / | 140 | 150 | / | 125 | 140 | 140 | 265 | 265 | |
| breakdown voltage | 250 | 150 | 150 | 250 | 250 | (10-25)220 (25-40)250 | 200 | 225 | 250 | 400 | 450 | |
| Switching current | DC MAX | 0.5 | 0.10 | 0.5 | 0.50 | 0.5 | 0.5 | 0.3 | 0.4 | 0.5 | 0.4 | 0.5 |
| AC RMS MAX | 0.35 | / | / | 0.35 | / | / | 0.2 | 0.3 | 0.35 | 0.3 | 0.35 | |
| Output current | DC MAX | 1.0 | 0.30 | / | 0.80 | 1.0 | 1 | 0.6 | 0.8 | 1 | 1.4 | 1.5 |
| AC RMS MAX | 0.7 | / | / | 0.56 | / | / | 0.4 | 0.55 | 0.7 | / | / | |
| resistance MAX | 0.12 | 0.10 | 0.1 | 0.10 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | |
| insulation resistance MIN | 10'10 | 10'12 | 10'9 | 10'12 | 10'10 | 10'10 | 10'10 | 10'10 | 10'10 | 10'10 | 10'10 | |
| capacitance MAX | 0.2 | 0.20 | 0.5 | 0.30 | 0.3 | 0.7 | 0.2 | 0.2 | 0.2 | |||
| operate time MAX | 0.5 | 0.6 | 0.7 | 0.6 | 0.7 | 0.8 | 0.55 | 0.6 | ||||
| Release time MAX | 0.1 | 0.05 | 0.3 | 0.2 | 0.05 | 0.1 | 0.2 | 0.2 | ||||
| resonace frequency | 8750 | 7000~8000 | 5000 | 6250 | 4600~5400 | 4000 | 5200 | 4000 | ||||
| operating frequency MAX | 500 | 500 | 400 | 500 | 500 | 500 | 500 | 500 | ||||
contact with us for more info and tell us your requiremnet.
* Products are shipped via UPS / DHL/ FedEx / TNT, etc. (door to door), or air & sea shipment for larger qty.
* L/T: 3-7 days upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
* Shipping via DHL. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

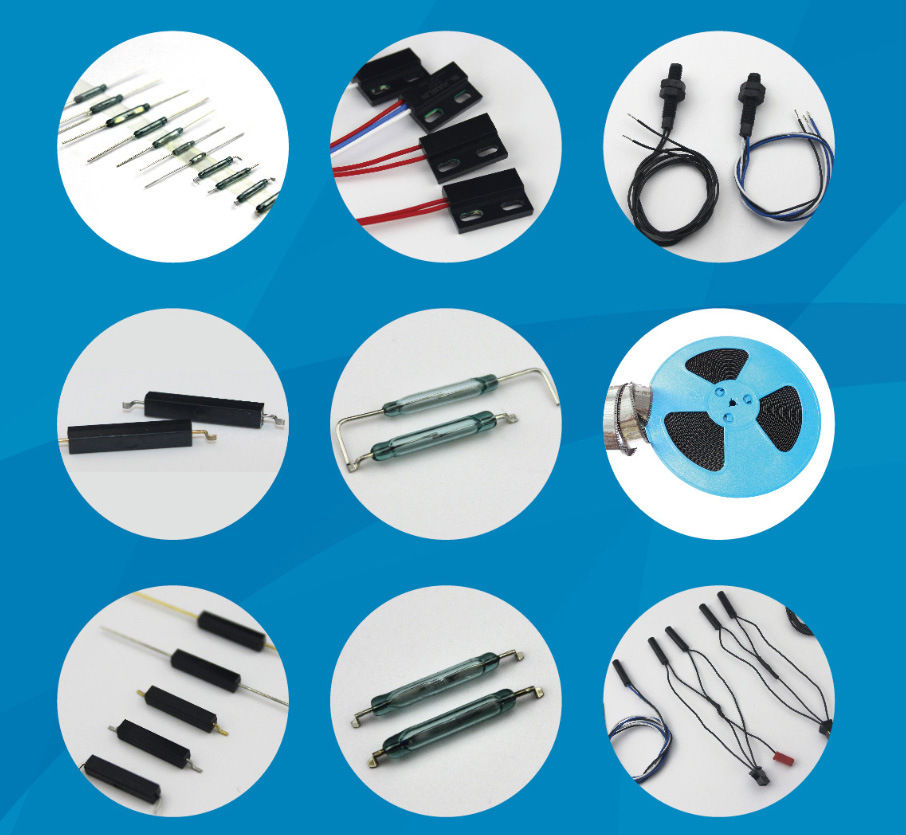

Kun shan golden light electronic technology Co., Ltd. is a high-tech enterprise specializing in automobile and sensor parts supporting services, business scope includes: Injection molding, thermosetting material packaging, stamping processing, precision hardware and mold processing. It is widely used in automotive,
Electronics, 5g, new energy, medical, high-speed rail, aerospace and other fields.
GLE is located in kunshan national high-tech industrial development zone. Since its establishment in 2010, it has been adhering to the business philosophy of"pursuing excellence and sharing the future" and the quality policy of "striving forexcellence and customer satisfaction". So far, it has 2 subordinate factories, 180 employees, 15, 000 square meters of production area, and dozens of patented
Technologies. The company has passed IATF16949 and other certification, relying on advanced processing and testing equipment, as well as complete and stable process capacity, from product design to manufacturing, from product assembly to product testing, to provide customers with quality products and fast service.
Long wind and waves will sometimes, straight sail to the sea. Gle looks forwardto working with you hand in hand!
| What kinds of product do you manufacture? |
| Our products includes photocell sensor, proximity switch, infrared light curtain, Vehicle separator, Loop detector and laser radar.,etc. |
| Can I get some sample? |
| Yes, Sample orders are welcomed. |
| Have photocell sensors 100% assembled well in stock? |
| We have some standard photocell sensors in stock with limited quantity; While almost all photocell sensors will be newly produced according to your order. |
| What is the delivery time? |
| 15-30 days for mass production depends on different products |
| What is your MOQ? |
| We provide small MOQ for each item; it depends on your specific order. |
| Do you have customization service? |
| Yes, We can provide customized products while the customization needs to meet certain quantity. |
| Do you test all goods before delivery? |
| Yes, We have 100% test before delivery. |
| What is your payment term? |
| We usually use 100% T/T in advance; West union and PayPal are also available for small order. |
| Do you provide warranty for the goods? |
| Yes, We provide warranty for all the goods from us. For the sensor product the warranty is 15 months, For the light curtain, laser radar product the warranty is 18 months. |
| May I visit your factory? |
| Sure, You are always welcome to visit us |
