JZG-RS-06
GLE

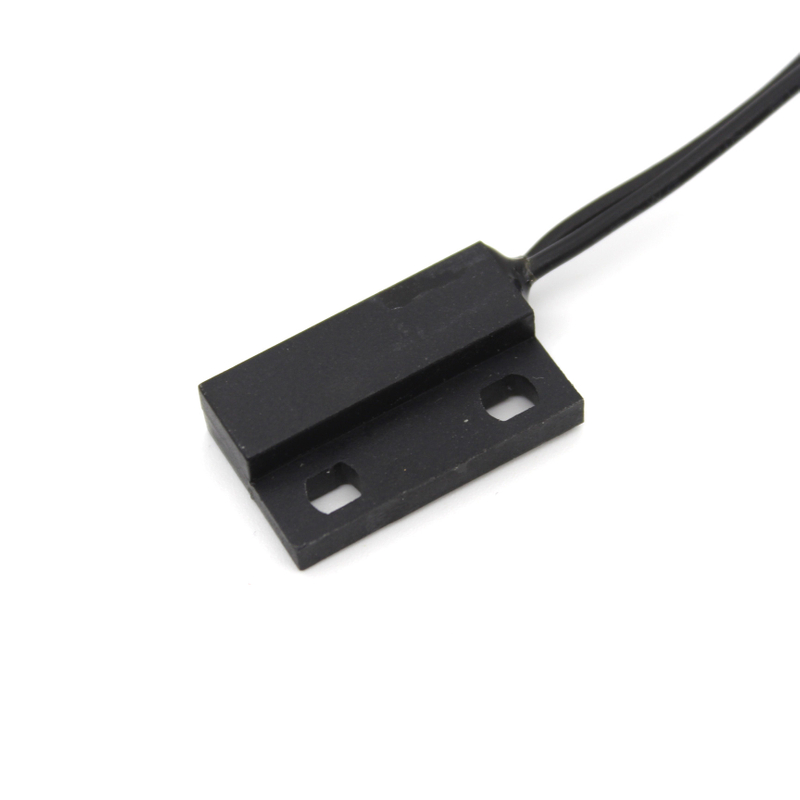

Proximity sensor is constructed by shaping and sealing the magnetic spring tube connected with wires.Switching action will occur when a magnetic object is in the proximity.It is usually used as a position sensor.Proximity sensor is widely used in measuring instruments,office automated equipment,household supplies,security and safety equipment,and transportation equipment.
Application
This product can be used in measuring instruments,office automated equipment,household supplies,security and safety equipment,and transportation equipment,etc. It will bewidely applied in motor vehices ,industrial equipment , agricultural equipment and household electrical appliances in the Future.
| Specification: | |
| Body material | A.B.S |
| Contact type | NO |
| Max contact rating | 10W |
| Max switching voltage | 100VDC |
| Max switching current | 0.5A |
| Max breakdown voltage | 220VDC |
| Operate distance | 15mm |
| Temperature rating | -10-+60°C |
| Contact Type | Normally Open | Normally Open High Voltage | Normally Closed | Change Over | |
| Pull In AT-Range | 10 - 40 | 10 - 40 | 10 - 40 | 10 - 40 | |
| Contact Rating | VA/Watt - max. | 10 | 10 | 5 | 5 |
| Switching voltage | Vdc - max. | 200 | 300 | 175 | 175 |
| Vac - max. | 140 | 265 | 120 | 120 | |
| Breakdown Voltage | Vdc - min. | 250 | 400 | 200 | 200 |
| Switching Current | Adc - max. | 0.5 | 0.40 | 0.25 | 0.25 |
| Aac - max. | 0.35 | 0.30 | 0.18 | 0.18 | |
| Carry Current | Adc - max. | 1.2 | 1.40 | 1.5 | 1.50 |
| Contact/Initial Resistance | Ω - max. | 0.2 | 0.2 | 0.2 | 0.2 |
| Insulation Resistance | Ω - min. | 1010 | 1010 | 109 | 109 |
| Contact Capacitance | pF - typ. | 0.3 | 0.2 | 0.3 | 0.3 |
| Operating Temperature | °C | -40 to +150 | -40 to +150 | -40 to +150 | -40 to +150 |
| Operate Time | ms - max. | 1.0 | 1.0 | 3.0 | 3.0 |
| Release Time | ms - max. | 1.0 | 1.0 | 3.0 | 3.0 |
| Shock 11ms 1⁄2 sine | G - max. | 100 | 100 | 50 | 50 |
| Vibration 50-2000 Hz | G - max. | 30 | 30 | 30 | 30 |
Trade Capacity
International Commercial Terms(Incoterms): EXW
Nearest Port: shanghai
Import & Export Mode: Have Own Export License
Shipping
* Products are shipped via UPS / DHL/ FedEx / TNT, etc. (door to door), or air & sea shipment for larger qty.
* L/T: 3-7 days upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
* Shipping via DHL. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Sample Availability & Policy
Samples are to be sent to our customers for free on their request so long as they are willing to pay for the freight, or we can pay the freight for some old customers from our side as well, or the customer can pay the freight in advance and we can ship samples with our courier as well.
Guarantees/Warranties/Terms and Conditions
We provide product quality guarantee.
A 15-day quick delivery is assured.
Payment terms include T/T but it is subject to negotiation like L/C, PayPal, Western Union and more.
After Sales Service
Excellent service is offered through our network of offices and head office.
Please contact our marketing sales department either by phone or e-mail or if convenient, visit our office.
Aside from the friendly service, we offer the most competitive prices and flexible scheduling.
Kun Shan Golden Light Electronic Technology CO., Ltd. is one of Chinese professional precision electronic components, it provides the one package auxiliary services to meet customers' specifications, ranging from mould making, jnjection moulding, thermosetting material overmolding, stamping and precision metal parts tooling. The company was founded in 2010, and is located at #1277 Yingbin Road, Kun Shan High-tech lndustrial Park. We have employed more than 110 worker now and the factory building area of 4000 square meters. We firmly believe that the advanced technology will produce value-added services to customers. The company holds a number of inventions and new patents for utility model, meanwhile, new type of the parts and outstanding R&D team will bring us more and more development motive force to go forward. Our company has passed ISO9001:2008 and TS16949 quality system certification, and with "Quality to add value, Efficiency to cut costs" as the principle, all staff pay attention to the quality control, made us no matter what the product development manufacturing, marketing, products distribution and customer service will be entitled to satisfy the customer's requirement promptly and efficiently. We will inherit and develop the enterprise spirit of persistent endeavor, accepting higher challenge and daring to climb the technology top, and expect faithful cooperation with you to advance towards and build a brilliant future together.
